5M Wire Flame Spray Gun

Price Range : ₹ 45K - 2Lakh
Material of Construction
Aluminum, Brass, Bronze, CI Casting, Stainless Steel
Type of Gun
5M Wire Flame Spray Gun
Compressed Air Required
25 to 30 CFM at 5 bar
Wire feed Size
5mm
Input Gas
Oxygen and LPG/ Acetylene
Wire Feed
Pneumatic Air Driven Turbine or Electric drive
Color
As per client requirement
Country of Origin
Made in India
Brand
Shot Blaster
Delivery Time
15-20 Days
Packaging Details
Polly Pack With Bubble Packing
  • The themes that will be sprayed are unaffected by high temperatures, ensuring dimensional and morphological stability as well as the lack of cracks and strength loss.
  •   There are several different coating thicknesses available.
  •   In addition to hard ingredients like metal oxide, nitride, carbide, and other hard elements that offer a high level of wear resistance, the coating also includes harder particles than the original materials.
  •   steel with zinc and aluminum cathodic coatings to prevent corrosion.
  •   Self-bonding and bond coats constructed of composite nickel/aluminum wire.

5M Wire Flame Spray Gun

5M Wire Spray Gun is a mass production environment having long continuous spray periods while maintaining constant coating quality. It operates reliably and economically; with minimal downtime. This unit has an external Wire Feed Speed Panel that adjusts the rate of spray. When maintenance is required, the 5KM series guns can be serviced quickly and simply, returning to production with minimal downtime.

5M Wire Spray Gun Process

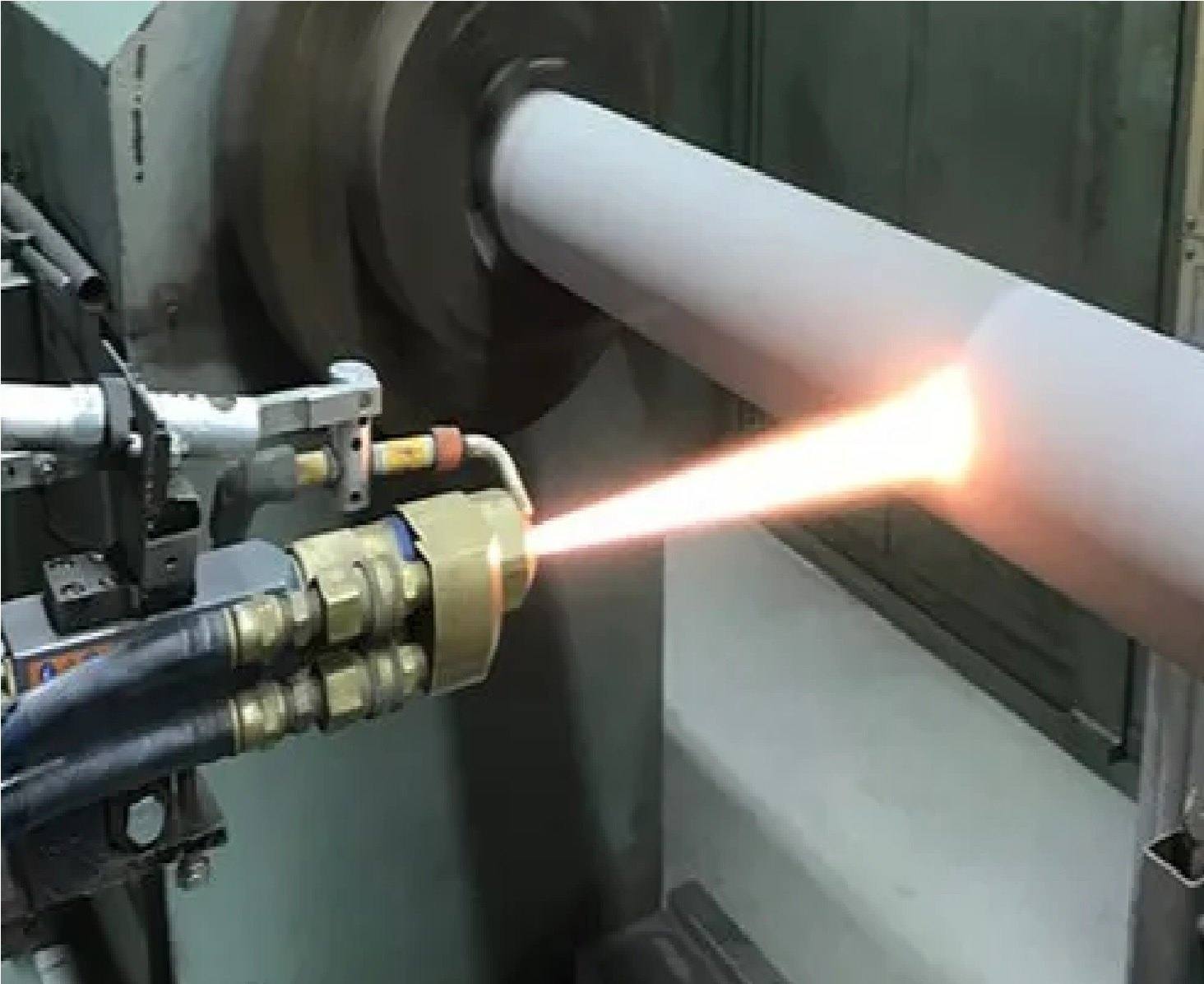

The 5M Wire Flame Spray gun can spray any wire made for Thermal Spray from soft, low-melt point materials such as Zinc wire or Babbitt wire to high-melt wires such as Stainless or Moly steel. Elements can be easily changed for multiple wire diameters. The wire flame spraying process uses metals and alloys in wire form as its spraying materials, and combustion flame or electric arc spray gun as its heat source. The molten materials are sprayed onto the surface of the subject to form the coating.

Total metals and alloys in wire form are available for the material, such as copper, high carbon steel, bronze, stainless steel, molybdenum, and low melting point metals including aluminum, zinc, and other metals. In this oxygen & acetylene are mixed to form a Flame Spray Gun. To have combustion of wire inside the gun. Spilled to the subject of an entity through the coating is done. Compressed air is controlled by the airflow meter.

5M Wire Flame Spray Gun Price in India

Thermal spray guns are manufacturers, suppliers, and Exporter of 5KM Wire Flame Spray Gun, 11M Flame Spray Gun, 12M Wire Flame Spray Gun, Thermal Spray Gun, Flame Spray Gun, Metalizing Gun, Metalizing Spray Gun, Arc Spray Gun, Zinc Spray Gun, Blasting machine, etc. at low price best quality.

Our Milestones :

  Leading Supplier & Exporter

  Trustseal Verified

  ISO Certified

  Manufacturer

Payment Terms :

  100% T/T

  RTGS

  NEFT

  IMPS

Transportation Mode :

  Air Transport

  Land Transport

  Sea Transport

Wire Flame Spray Gun


₹ 45K - 2Lakh

11M Flame Spray Gun


₹ 45K - 5Lakh

12M Wire Flame Spray Gun


₹ 45K - 2Lakh

14M Wire Flame Spray Gun


₹ 45K - 2Lakh

Safety Wear


₹ 2K - 6K
We are Supplier, Exporter & leading Manufacturer’s of all type Thermal Spray Gun & Thermal Spray Coating equipment’s like Plasma Spray, Electric Arc Wire Spray Gun,Flame Spray Gun, High Velocity Oxy-Fuel (HVOF) Spray Gun.
